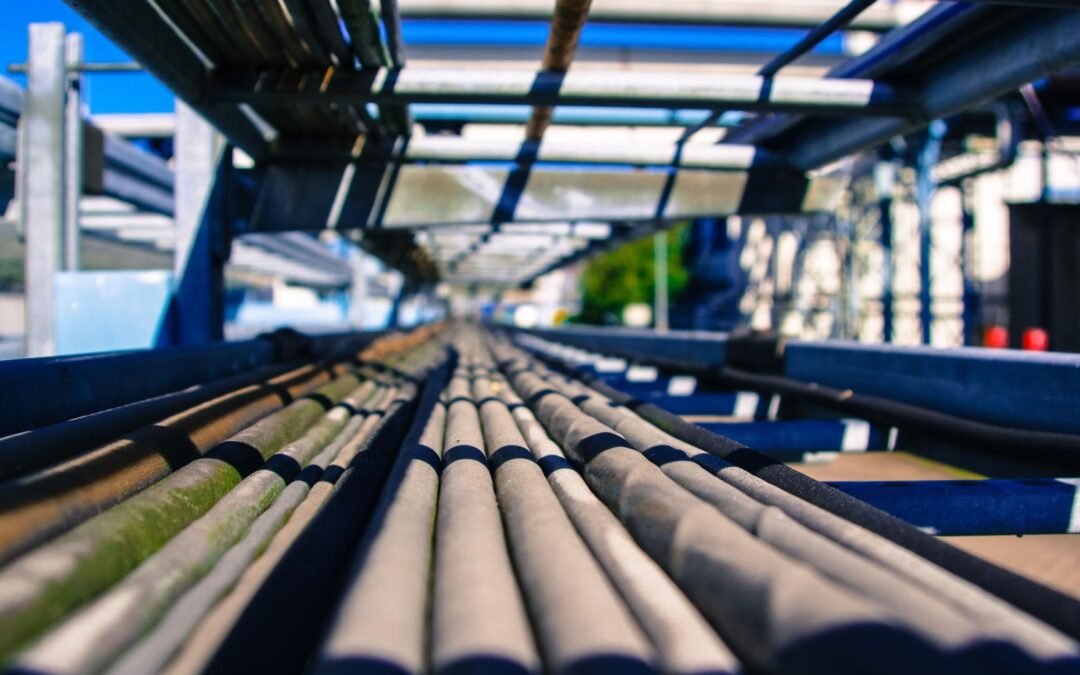

Cable Size Calculation for Industrial Projects | Complete Guide
Cable size calculation is a critical process in industrial electrical design. It ensures that cables can safely carry electrical load without overheating or causing voltage drop. In industrial projects, proper cable sizing is essential for maintaining system performance and safety.
However, many professionals make mistakes while selecting cable sizes. Therefore, understanding the correct method of electrical cable sizing is very important. In this guide, you will learn the complete process with formulas, examples, and best practices.
What is Cable Size Calculation and Cable Sizing?
Cable size calculation refers to selecting the correct cable based on load requirements, voltage level, and installation conditions. It helps ensure that the cable can handle current safely without damage.
In addition, proper cable sizing reduces energy loss and improves efficiency. As a result, it increases the lifespan of electrical equipment in industrial environments.
Why Cable Size Calculation is Important
There are several reasons why selecting the right cable size and proper cable sizing is important in industrial systems.
- Prevents overheating and insulation failure
- Reduces voltage drop in long cable runs
- Improves system efficiency
- Ensures compliance with safety standards
- Increases equipment lifespan
Therefore, accurate cable sizing plays a vital role in overall electrical design.
Factors Affecting Cable Size
Several factors influence cable sizing in industrial projects. Understanding these helps in making correct decisions.
- Load Current: Total current drawn by equipment
- Voltage Level: Determines cable rating
- Distance: Longer distances increase losses
- Installation Method: Air, tray, or underground
- Temperature: Affects heat dissipation
- Insulation Type: XLPE or PVC
Cable Size Calculation Formula
Where:
I = Current (Ampere)
P = Power (Watt)
V = Voltage
PF = Power Factor
After calculating current, engineers select the appropriate cable from standard charts. In addition, voltage drop must be checked for safe operation.
Step-by-Step Cable Sizing Process
- Calculate total load (kW or kVA)
- Convert load into current
- Check voltage drop limits
- Select cable size using charts
- Apply correction factors
As a result, this cable sizing process ensures safe and efficient electrical performance.
Understanding Voltage Drop
Voltage drop occurs when electrical energy is lost during transmission. However, excessive voltage drop can reduce equipment efficiency and cause malfunction.
To understand more, refer to power transmission systems .
Common Mistakes in Cable Selection
- Ignoring voltage drop
- Using undersized cables
- Not considering environment
- Skipping correction factors
- Using assumptions instead of calculations
However, avoiding these mistakes can significantly improve system reliability.
Best Practices for Cable Sizing
- Use standard sizing tables
- Follow IEC and IS standards
- Perform accurate calculations
- Consult experienced engineers
- Verify results before installation
Therefore, following these practices ensures long-term safety and efficiency.
Explore Our Services
For professional assistance:
Cable Sizing Services
Power System Studies
Electrical Design Services
Substation Design Services
FAQs
What is cable size calculation?
It is the process of selecting the correct cable size based on load and voltage.
Why is cable sizing important?
It ensures safety and prevents overheating.
What happens if cable size is wrong?
It can cause system failure and energy loss.
Conclusion
Cable size calculation and proper cable sizing play a crucial role in industrial electrical design. By following proper methods and best practices, engineers can ensure safe and efficient systems.
